Texas Instruments
DRV104PWPRG4
8-V to 32-V PWM high-side driver (1.2A) for solenoids, coils, valves, heaters, and lamps 14-HTSSOP -40 to 85
PackageHTSSOP
Quick Jump:
Technical Specifications
Texas Instruments DRV104PWPRG4 technical specifications.
General
| Package/Case | HTSSOP |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 8V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 32V |
| Output Current | 2A |
| Output Voltage | 450mV |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Weight | 0.002046oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DRV104PWPRG4 Datasheet
Download the complete datasheet for Texas Instruments DRV104PWPRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

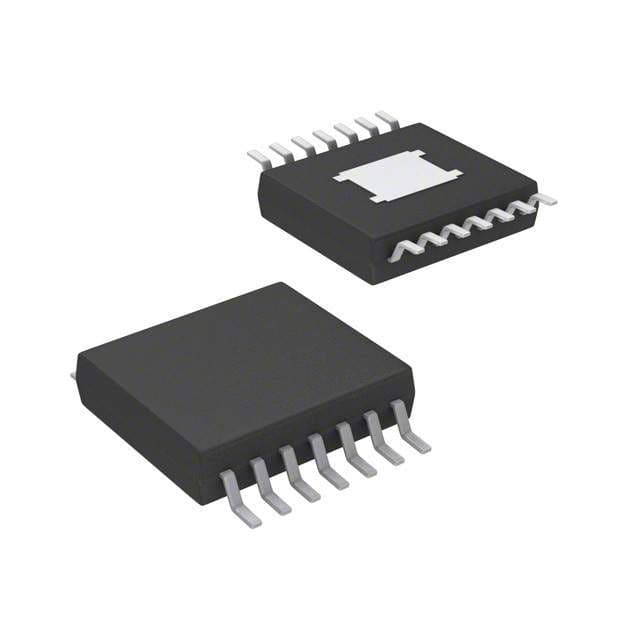

Product Images
