Texas Instruments
DRV10963DSNR
5-V nominal, 1.8-A peak sensorless sinusoidal control 3-phase BLDC motor driver 10-SON -40 to 125
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV10963DSNR technical specifications.
General
Package/Case
SON
Height
600um
Interface
PWM
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.1V
Mount
Surface Mount
Number of Outputs
3
Operating Supply Current
5.5mA
Output Current
500mA
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DRV10963
Thickness
550um
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV10963DSNR Datasheet
Download the complete datasheet for Texas Instruments DRV10963DSNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

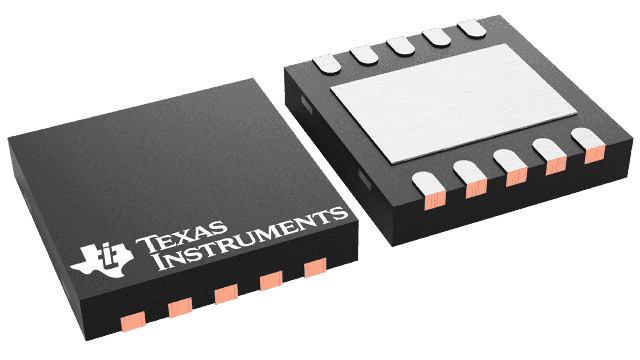

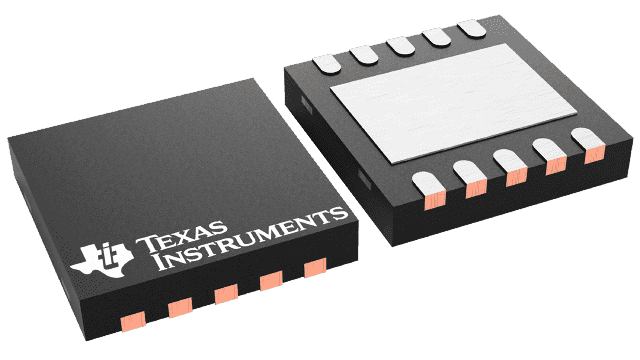

Product Images
