The DRV2604YZFR is a surface mount I2C interface IC from Texas Instruments. It operates over a temperature range of -40°C to 85°C and has a quiescent current of 600uA. The device is RoHS compliant and lead free. It is packaged in a DSBGA-9 package and is available in quantities of 3000. The DRV2604YZFR is suitable for use in a variety of applications where a low power I2C interface is required.
Current600uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV2604YZFR technical specifications.
General
| Interface | I2C |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Voltage | 5.5V |
| Output Voltage | 5.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 600uA |
| RoHS Compliant | Yes |
| Series | DRV2604 |
| Supply Current | 600uA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DRV2604YZFR Datasheet
Download the complete datasheet for Texas Instruments DRV2604YZFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

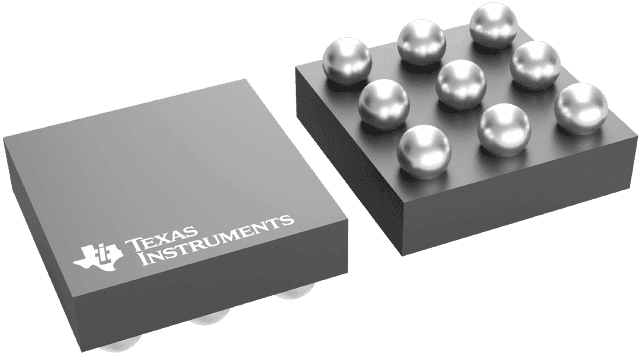

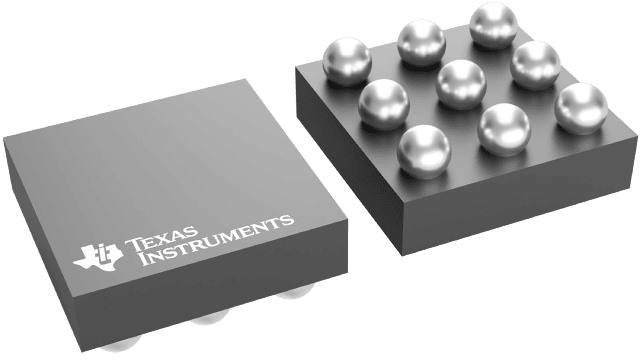

Product Images
