Brushless DC (BLDC) motor predriver for 3-phase applications. Features a 60V maximum supply voltage and 1.7A maximum output current. Surface mountable in a 56-pin HTSSOP package with dimensions of 14.1mm length, 6.2mm width, and 1.05mm height. Operates across a temperature range of -40°C to 125°C. Lead-free and RoHS compliant.
PackageHTSSOP
Current15mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8301DCA technical specifications.
General
Package/Case
HTSSOP
Height
1.05mm
Lead Free
Lead Free
Length
14.1mm
Max Collector Current
1.7A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
60V
Min Supply Voltage
8V
Motor Type
Brushless DC (BLDC)
Mount
Surface Mount
Number of Outputs
1
Output Current
1.7A
Package Quantity
35
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
15mA
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV8301DCA Datasheet
Download the complete datasheet for Texas Instruments DRV8301DCA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

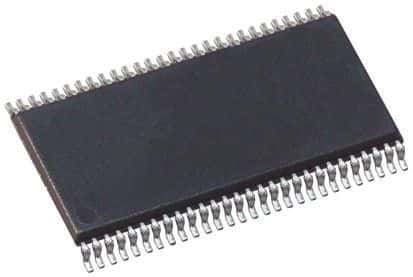

Product Images
