3-phase gate driver IC for Brushless DC (BLDC) motors, featuring integrated current shunt amplifiers and SPI interface. Operates with a supply voltage range of 6V to 60V, supporting a maximum collector current of 1.7A. This surface mount component is housed in a 48-HTSSOP package with dimensions of 12.6mm (L) x 6.2mm (W) x 1.05mm (H). It offers three outputs and functions across an operating temperature range of -40°C to 125°C, with NMOS technology. RoHS compliant and lead-free.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8303DCA technical specifications.
General
Package/Case
HTSSOP
Height
1.05mm
Interface
SPI
Lead Free
Lead Free
Length
12.6mm
Max Collector Current
1.7A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
60V
Min Supply Voltage
6V
Motor Type
Brushless DC (BLDC)
Mount
Surface Mount
Number of Outputs
3
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Technology
NMOS
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV8303DCA Datasheet
Download the complete datasheet for Texas Instruments DRV8303DCA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

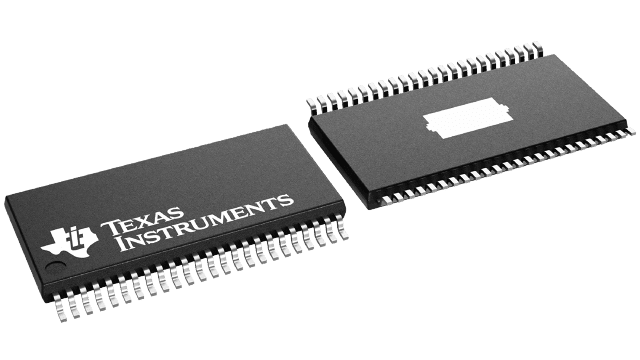

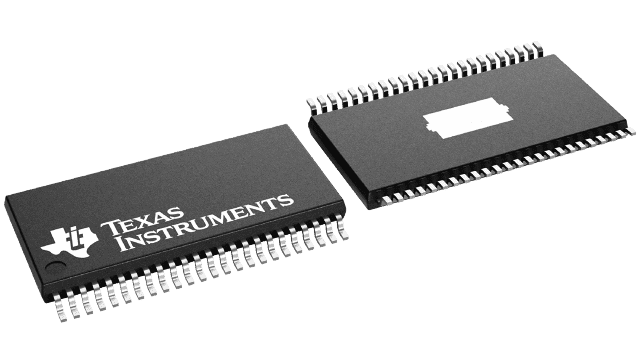

Product Images
