Brushless DC (BLDC) motor driver featuring 3-phase output with 8A per channel current capability. Operating supply voltage ranges from 10.8V to 13.2V, with a maximum output current of 13A. Integrated fault protection includes over-temperature and short-circuit detection. This surface-mount component is housed in an HSSOP package and utilizes PWM interface for control.
PackageHSSOP
Current8A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8332DKD technical specifications.
General
Package/Case
HSSOP
Fault Protection
Over Temperature, Short Circuit
Height
3.3mm
Interface
PWM
Lead Free
Lead Free
Length
16mm
Max Collector Current
8A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
13A
Max Supply Voltage
13.2V
Min Supply Voltage
10.8V
Motor Type
Brushless DC (BLDC)
Mount
Surface Mount
Number of Outputs
3
Operating Supply Voltage
12V
Output Current
8A
Output Current per Channel
8A
Package Quantity
29
Packaging
Rail/Tube
Power Supply
52.2V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
8A
Width
11.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV8332DKD Datasheet
Download the complete datasheet for Texas Instruments DRV8332DKD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

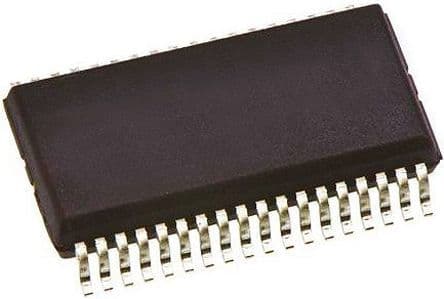

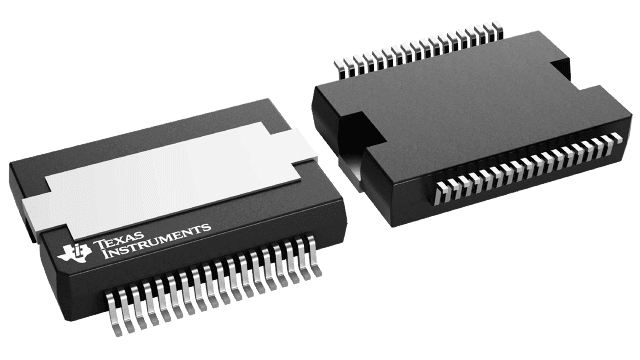

Product Images
