Dual H-bridge stepper motor controller featuring SPI interface and a 38-pin HTSSOP package. Operates from 8V to 52V supply voltage with a maximum output current of 200mA. This surface mount component offers a single output and a supply current of 17mA, with an operating temperature range of -40°C to 85°C. Packaged in a rail/tube, it is RoHS compliant.
PackageHTSSOP
Current17mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8711DCP technical specifications.
General
Package/Case
HTSSOP
Height
1.05mm
Interface
SPI
Lead Free
Lead Free
Length
9.8mm
Max Collector Current
200mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
52V
Min Supply Voltage
8V
Motor Type
Stepper
Mount
Surface Mount
Number of Outputs
1
Output Current
200mA
Output Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DRV8711
Supply Current
17mA
Thickness
1.15mm
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV8711DCP Datasheet
Download the complete datasheet for Texas Instruments DRV8711DCP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

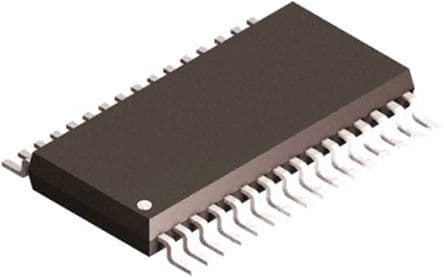

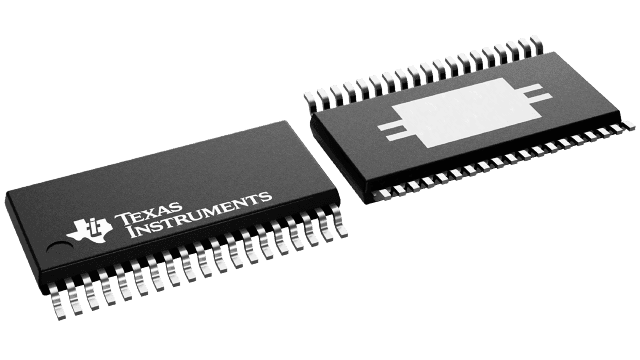

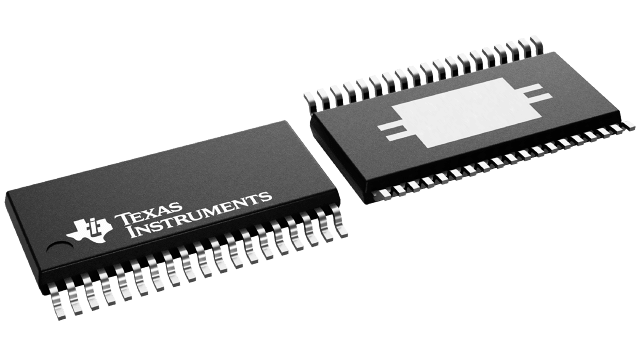

Product Images
