Texas Instruments
DRV8804DWR
60-V, 2.3-A, quad low-side motor driver with serial control 20-SOIC -40 to 125
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8804DWR technical specifications.
General
Package/Case
SOIC
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
60V
Min Supply Voltage
8.2V
Mount
Surface Mount
Number of Outputs
4
Output Current
1.5A
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV8804DWR Datasheet
Download the complete datasheet for Texas Instruments DRV8804DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

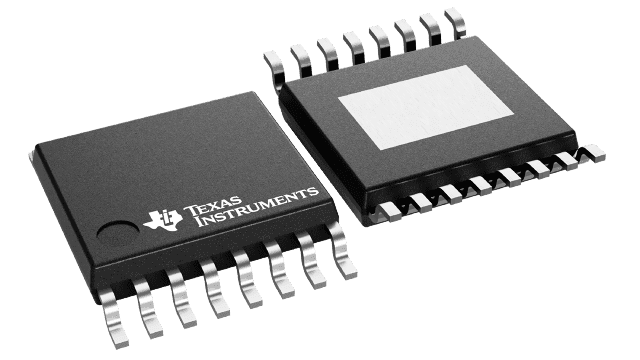

Product Images
