Texas Instruments
DRV8812RHDT
45-V, 1.6-A bipolar stepper or dual H-bridge motor driver with current regulation 28-VQFN -40 to 85
PackageVQFN
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8812RHDT technical specifications.
General
| Package/Case | VQFN |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 45V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Output Current | 1.6A |
| Output Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DRV8812RHDT Datasheet
Download the complete datasheet for Texas Instruments DRV8812RHDT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

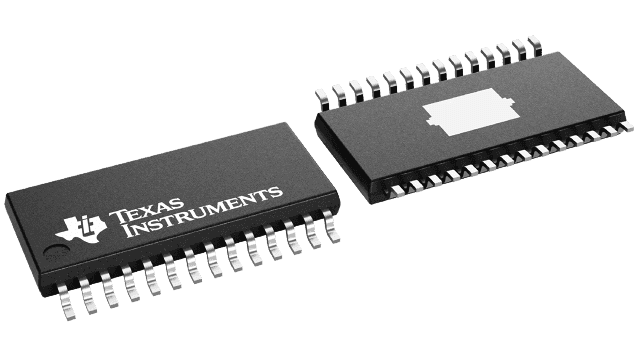

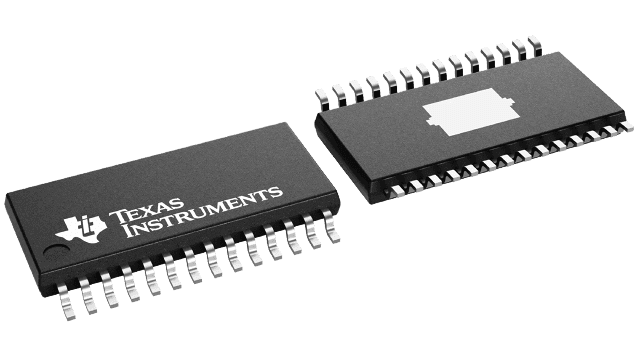

Product Images
