Texas Instruments
DRV8813PWP
45-V, 2.5-A bipolar stepper or dual H-bridge motor driver with current regulation 28-HTSSOP -40 to 85
Frequency50 kHz
PackageHTSSOP
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8813PWP technical specifications.
General
| Package/Case | HTSSOP |
| Height | 1.05mm |
| Lead Free | Lead Free |
| Length | 9.8mm |
| Max Collector Current | 2.5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 45V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Operating Frequency | 50 kHz |
| Output Current | 1.75A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DRV8813PWP Datasheet
Download the complete datasheet for Texas Instruments DRV8813PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

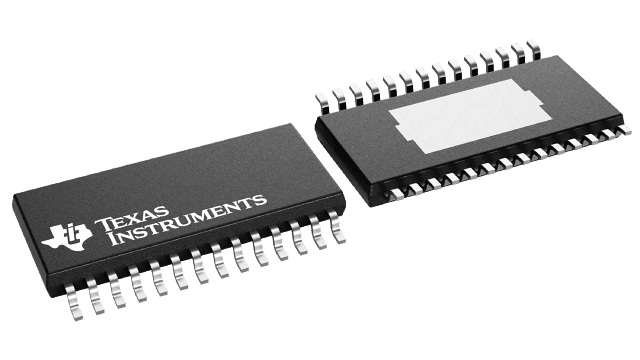

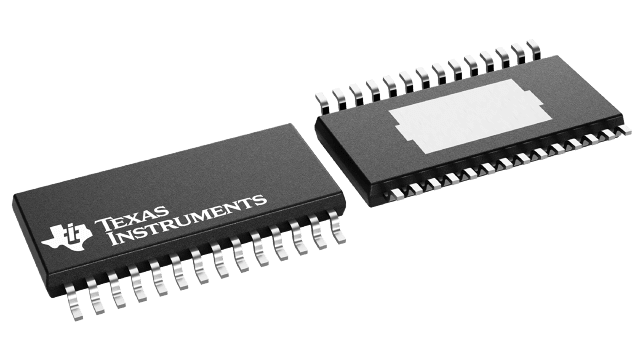

Product Images
