Texas Instruments
DRV8823QDCARQ1
Automotive 32-V, 1-A bipolar dual stepper or quad H-bridge motor driver with current regulation 48-HTSSOP -40 to 125
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8823QDCARQ1 technical specifications.
General
| Package/Case | HTSSOP |
| Interface | Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Output Current | 1.5A |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DRV8823QDCARQ1 Datasheet
Download the complete datasheet for Texas Instruments DRV8823QDCARQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

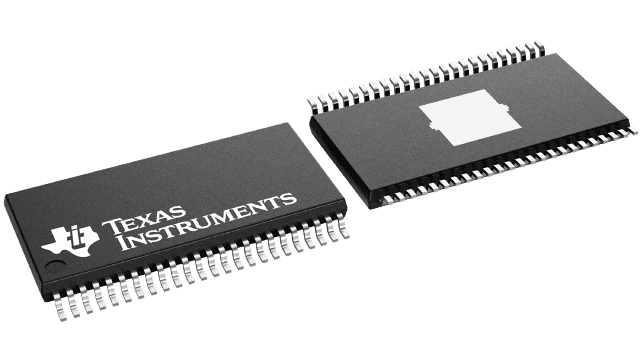

Product Images
