Texas Instruments
DRV8829PWP
5A Half Bipolar Stepper Motor Driver with 32-Level Current Regulation (PH/EN Ctrl) 28-HTSSOP -40 to 85
PackageHTSSOP
Current8mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8829PWP technical specifications.
General
| Package/Case | HTSSOP |
| Height | 1.05mm |
| Lead Free | Lead Free |
| Length | 9.8mm |
| Max Collector Current | 3.5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 45V |
| Min Supply Voltage | 8.2V |
| Motor Type | Stepper |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 3.5A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 8mA |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DRV8829PWP Datasheet
Download the complete datasheet for Texas Instruments DRV8829PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

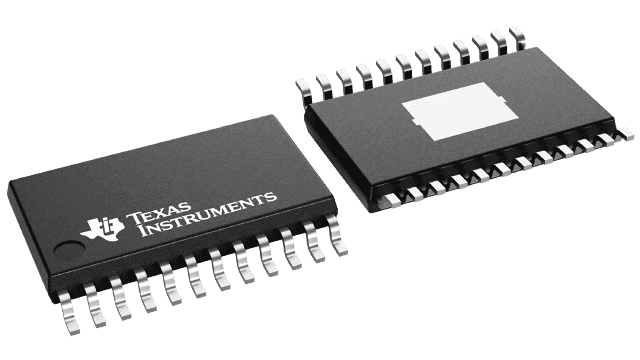

Product Images
