Texas Instruments
DRV8830DGQ
6.8-V, 1-A H-bridge motor driver with speed regulation and i2c control 10-HVSSOP -40 to 85
PackageMSOP
Current1.4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8830DGQ technical specifications.
General
Package/Case
MSOP
Height
0.95mm
Lead Free
Lead Free
Length
3.1mm
Max Collector Current
1A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6.8V
Min Supply Voltage
2.75V
Motor Type
Brushed
Mount
Surface Mount
Number of Outputs
1
Output Current
1A
Output Voltage
1.285V
Package Quantity
80
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.4mA
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV8830DGQ Datasheet
Download the complete datasheet for Texas Instruments DRV8830DGQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

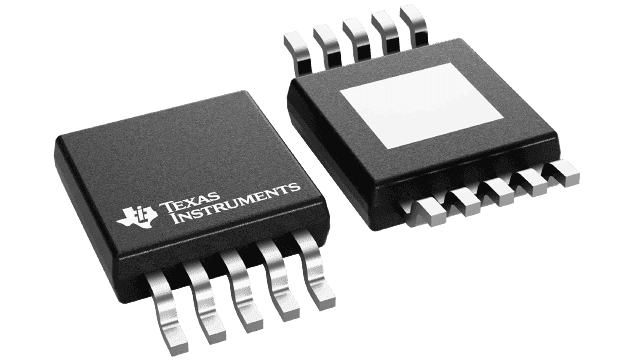

Product Images
