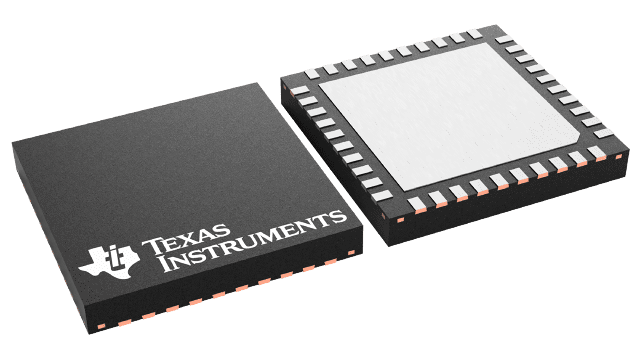

1.5 Gbps LVDS repeater, featuring a 1:4 fan-out buffer. This surface mount interface IC operates with a 3V to 3.6V supply voltage, consuming 113mA at 3.3V. It offers a maximum data rate of 1500Mbps with a propagation delay of 0.65ns. The component is RoHS compliant and operates within a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DS10BR254TSQ/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments DS10BR254TSQ/NOPB technical specifications.
| Data Rate | 1500Mbps |
| Input | CML |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 4.65W |
| Max Supply Current | 135mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Elements | 1 |
| Number of Receivers | 1 |
| Operating Supply Current | 113mA |
| Operating Supply Voltage | 3.3V |
| Output Current | 4mA |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Consumption | 396W |
| Power Dissipation | 4.65W |
| Propagation Delay | 0.65ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 0.65ns |
| RoHS | Compliant |
