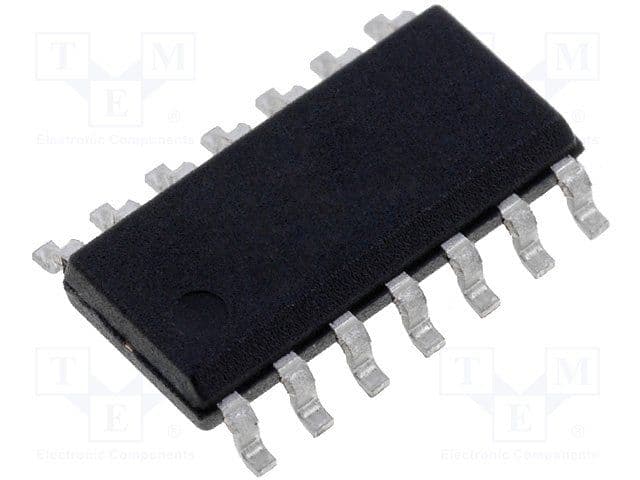

Quad CMOS line driver for RS-232 interfaces, featuring 4 drivers and 4 transmitters. Operates with a dual supply voltage range of 4.5V to 12.6V and a maximum supply current of 500uA. This surface mount component is housed in a 14-SOIC package with dimensions of 8.64mm (L) x 3.91mm (W) x 1.45mm (H). Includes ESD protection and operates within a temperature range of 0°C to 70°C. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DS14C88M/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Data Rate | 0.02Mbps |
| Dual Supply Voltage | 9V |
| ESD Protection | Yes |
| Height | 1.45mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Length | 8.64mm |
| Max Dual Supply Voltage | 12.6V |
| Min Dual Supply Voltage | 4.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 500uA |
| Max Supply Voltage | 12.6V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Transmitters | 4 |
| Package Quantity | 55 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 500uA |
| Width | 3.91mm |
| RoHS | Compliant |
