The DS14C88N is a 4-channel bus transceiver from Texas Instruments, packaged in a PLASTIC, DIP-14 package. It operates within a temperature range of 0 to 75°C. The device is not compliant with RoHS standards. The transceiver has a maximum supply voltage of 12.6V and a minimum supply voltage of 4.5V. It consumes a supply current of 500uA. The device is available in a packaging quantity of 25 units per rail or tube.
PackagePDIP
Current500uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments DS14C88N technical specifications.
General
| Package/Case | PDIP |
| Data Rate | 0.02Mbps |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 12.6V |
| Min Dual Supply Voltage | 4.5V |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Transmitters | 4 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Supply Current | 500uA |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments DS14C88N Datasheet
Download the complete datasheet for Texas Instruments DS14C88N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

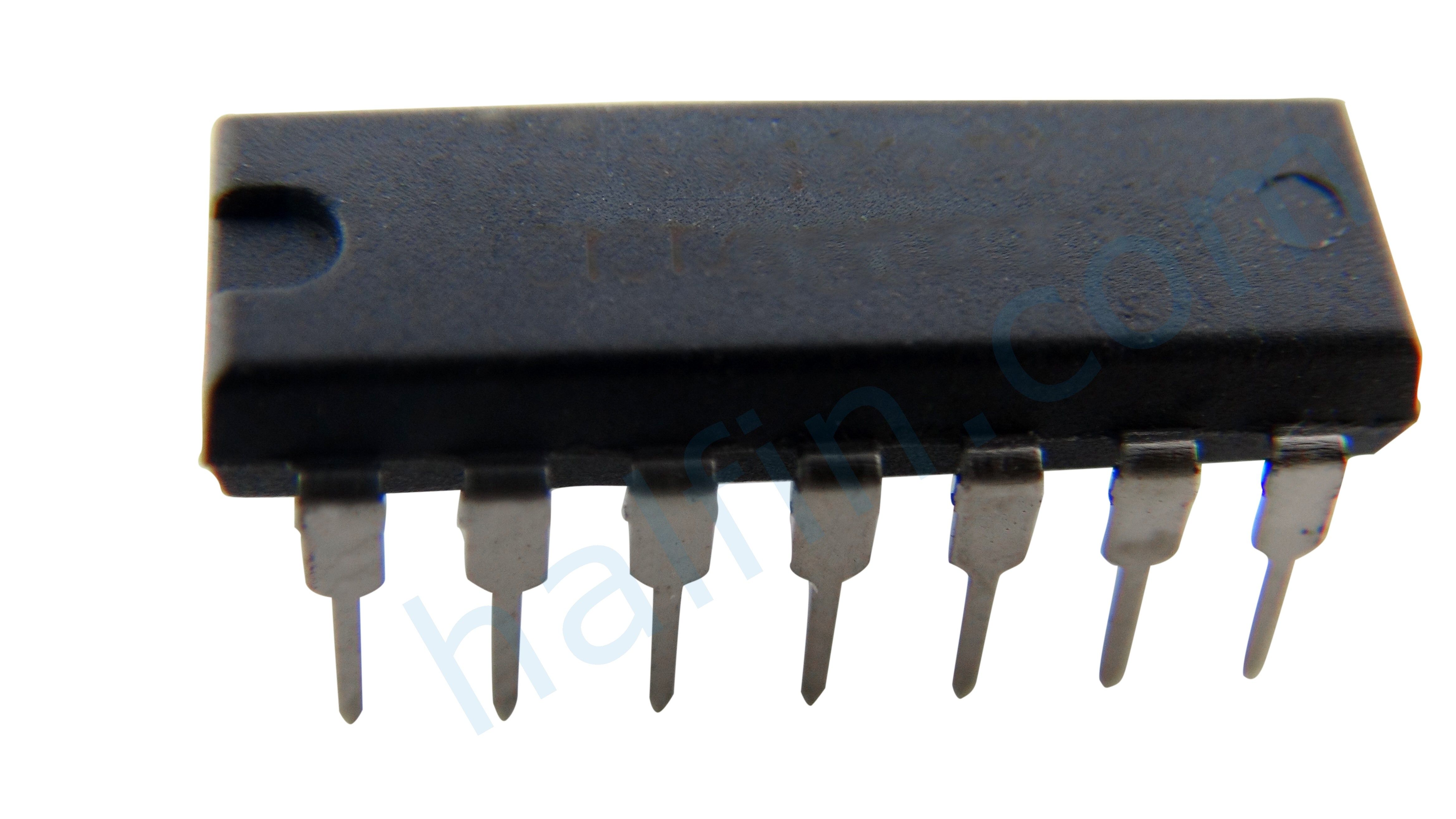

Product Images
