4-channel LVDS buffer/repeater featuring 2000Mbps data rate and CML input. This surface mount integrated circuit offers 4 drivers and 4 receivers within a TQFP package. Operating from a 3V to 3.6V supply, it functions between -40°C and 85°C with a typical propagation delay of 2ns. The device is lead-free, RoHS compliant, and designed for high-speed signal integrity applications.
PackageTQFP
MountingSurface Mount
Power575W
Quick Jump:
Technical Specifications
Texas Instruments DS15BR401TVS/NOPB technical specifications.
General
| Package/Case | TQFP |
| Data Rate | 2000Mbps |
| Input | CML |
| Lead Free | Lead Free |
| Logic Function | Buffer |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.64W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Drivers | 4 |
| Number of Elements | 4 |
| Number of Receivers | 4 |
| Operating Supply Current | 175mA |
| Operating Supply Voltage | 3.3V |
| Packaging | Tray |
| Power Consumption | 575W |
| Propagation Delay | 2ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 2ns |
| Weight | 0.319998oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS15BR401TVS/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS15BR401TVS/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

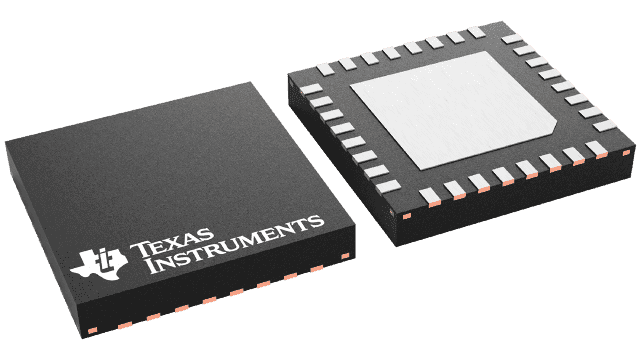

Product Images
