High-speed LVDS buffer with 3.125 Gbps data rate, featuring transmit pre-emphasis and receive equalization. This interface IC offers a single channel with one driver and one receiver, supporting CML input. Operating from a 3V to 3.6V supply, it functions across a -40°C to 85°C temperature range. The surface mountable 8-WSON package measures 3mm x 3mm x 0.8mm, with a typical supply current of 35mA.
Current43mA
MountingSurface Mount
Power115W
Quick Jump:
Technical Specifications
Texas Instruments DS25BR100TSD/NOPB technical specifications.
General
| Data Rate | 3125Mbps |
| Height | 0.8mm |
| Input | CML |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 100mV |
| Min Input Voltage | -100mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 450mV |
| Max Power Dissipation | 2.08W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Elements | 1 |
| Number of Receivers | 1 |
| Operating Supply Current | 35mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Consumption | 115W |
| Power Dissipation | 2.08W |
| Propagation Delay | 0.465ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 43mA |
| Turn-On Delay Time | 0.465ns |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS25BR100TSD/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS25BR100TSD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

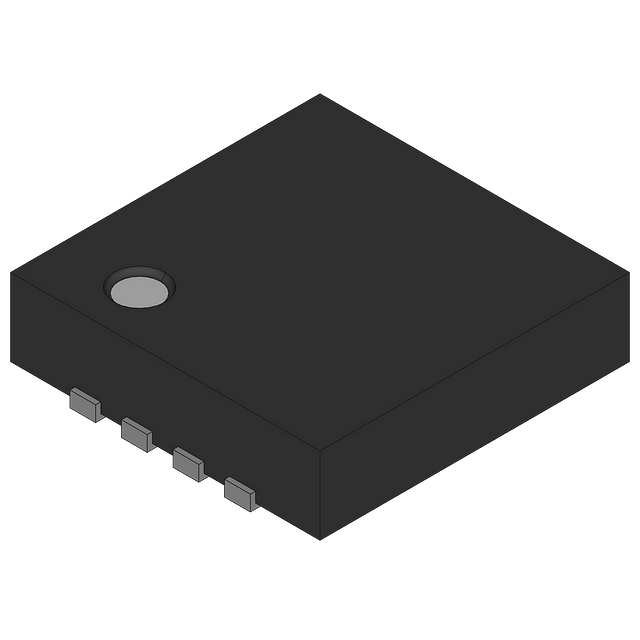

Product Images
