Quad driver IC featuring 4 independent drivers with a maximum output voltage of 70V and 600mA output current. Operates from a 3V to 5.25V supply voltage range with a maximum power dissipation of 2.075W. This through-hole mounted component is packaged in a 16-pin PDIP and offers a turn-on delay of 1µs and turn-off delay of 10µs. The device supports a maximum operating temperature of 125°C and is RoHS compliant.
PackagePDIP
Current80mA
Current Rating80mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments DS3668N/NOPB technical specifications.
General
| Package/Case | PDIP |
| Current Rating | 80mA |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Drivers | 4 |
| Number of Outputs | 4 |
| Output Current | 600mA |
| Output Voltage | 70V |
| Packaging | Rail/Tube |
| Power Dissipation | 2.075W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 80mA |
| Turn-Off Delay Time | 10us |
| Turn-On Delay Time | 1us |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS3668N/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS3668N/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

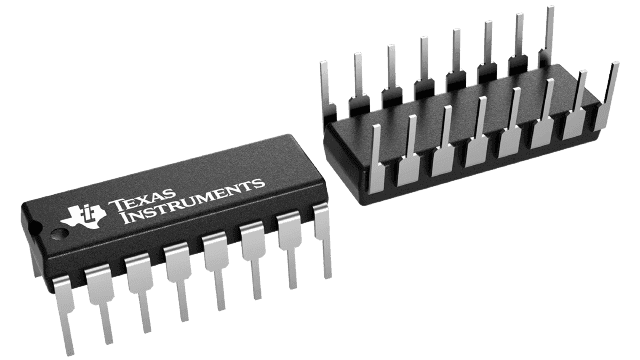

Product Images
