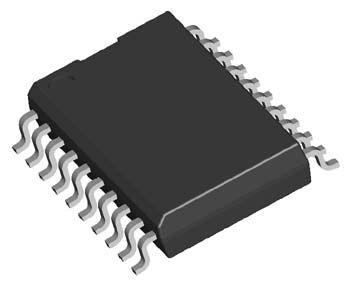

The DS36954M is a 4-channel transceiver with a data rate of 10Mbps, operating within a supply voltage of 4.75V to 5.25V. It is designed for surface mount applications and is packaged in a SOIC-20 package. The device is not RoHS compliant and has a maximum operating temperature of 70°C. It has a supply current of 90mA and a receiver hysteresis of 60mV.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DS36954M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments DS36954M technical specifications.
| Package/Case | SOIC |
| Data Rate | 10Mbps |
| Lead Free | Contains Lead |
| Logic Function | Transceiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Drivers | 1 |
| Number of Receivers | 4 |
| Number of Transceivers | 1 |
| Number of Transmitters | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 36 |
| Packaging | Rail/Tube |
| Receiver Hysteresis | 60mV |
| RoHS Compliant | No |
| Simplex/Duplex | Half Duplex |
| Supply Current | 90mA |
| RoHS | Not Compliant |
