Texas Instruments
DS40MB200SQ/NOPB
Dual 4.0 Gbps 2:1/1:2 CML Mux/Buffer with Transmit Pre-Emphasis and Receive Equalization 48-WQFN 0 to 85
PolarityNon-Inverting
Power1kW
Quick Jump:
Technical Specifications
Texas Instruments DS40MB200SQ/NOPB technical specifications.
General
| Data Rate | 4Gbps |
| Lead Free | Lead Free |
| Logic Function | Buffer, Mux |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Input Lines | 12 |
| Number of Output Lines | 12 |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Power Consumption | 1kW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS40MB200SQ/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS40MB200SQ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

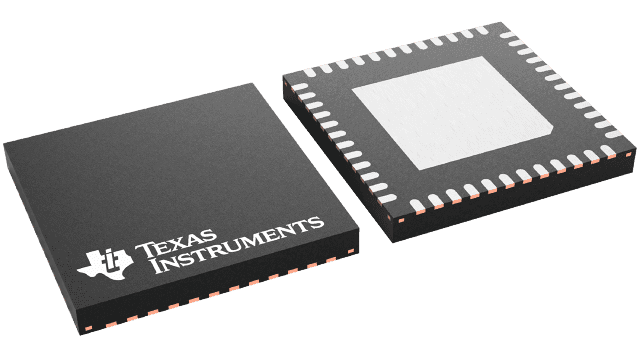

Product Images
