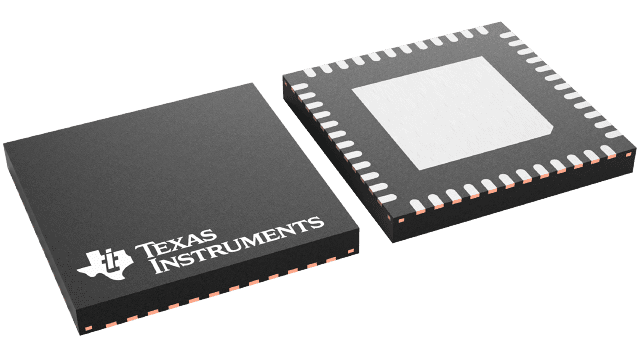

The DS42MB200TSQ/NOPB is a dual 12-input 12-output non-inverting logic mux from Texas Instruments. It operates at a maximum data rate of 4.25Gbps and a maximum supply voltage of 3.465V. The device is RoHS compliant and suitable for surface mount applications. It is rated for operation between -40°C and 85°C. The package type is HVQCCN.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DS42MB200TSQ/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Data Rate | 4.25Gbps |
| Lead Free | Lead Free |
| Logic Function | Buffer, Mux |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Input Lines | 12 |
| Number of Output Lines | 12 |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Power Consumption | 1kW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
