Quad CMOS differential line driver, LVDS interface, operating at 155.5Mbps. Features 4 drivers and 4 receivers with ESD protection. Housed in a 16-SOIC surface mount package, it operates from a 4.5V to 5.5V supply voltage with a nominal supply current of 21mA. Maximum power dissipation is 1.068W, with a propagation delay of 3ns. Operating temperature range is -40°C to 85°C.
PackageSOIC
MountingSurface Mount
Power20W
Quick Jump:
Technical Specifications
Texas Instruments DS90C031TM technical specifications.
General
Package/Case
SOIC
Data Rate
155.5Mbps
ESD Protection
Yes
Height
1.45mm
Interface
LVDS
Lead Free
Contains Lead
Length
9.91mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.068W
Max Supply Current
21mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Nominal Supply Current
21mA
Number of Drivers
4
Number of Elements
4
Number of Receivers
4
Number of Transmitters
4
Operating Supply Voltage
5V
Output Current
10uA
Output Voltage
1.6V
Package Quantity
48
Packaging
Rail/Tube
Power Consumption
20W
Power Dissipation
1.068W
Propagation Delay
3ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Turn-On Delay Time
3ns
Width
3.91mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments DS90C031TM Datasheet
Download the complete datasheet for Texas Instruments DS90C031TM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

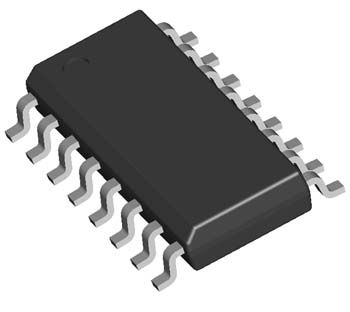

Product Images
