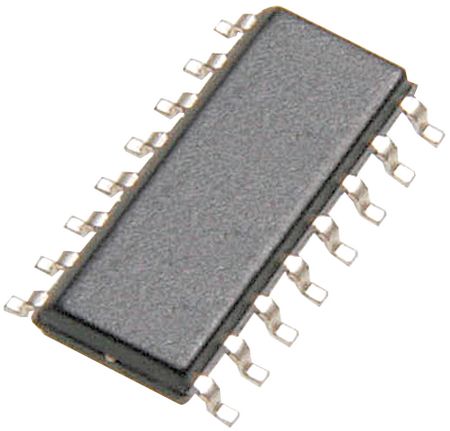

High-speed LVDS driver for robust data transmission. Features a 155Mbps data rate and operates with a 5V supply voltage. This 4-channel interface IC supports surface mount installation in a 16-pin SOIC package. Offers a wide operating temperature range from -40°C to 85°C with a propagation delay of 3ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DS90C031TM/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments DS90C031TM/NOPB technical specifications.
| Package/Case | SOIC |
| Data Rate | 155Mbps |
| Height | 1.45mm |
| Interface | LVDS |
| Lead Free | Contains Lead |
| Length | 9.91mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 21mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 21mA |
| Number of Channels | 4 |
| Number of Drivers | 4 |
| Number of Elements | 4 |
| Number of Receivers | 4 |
| Operating Supply Voltage | 5V |
| Output Current | 10uA |
| Output Voltage | 1.6V |
| Packaging | Rail/Tube |
| Power Consumption | 20W |
| Power Dissipation | 1.068W |
| Propagation Delay | 3ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3.91mm |
| RoHS | Compliant |
