Dual FPD-Link Receiver, supporting serial interface with a data rate up to 9.45Gbps. Operates at frequencies from 8 MHz to 135 MHz with a 3.3V operating supply voltage. Features a 128-TQFP surface mount package and is RoHS compliant. Designed for a temperature range of 0°C to 70°C.
Frequency135MHz
PackageTQFP
Current375mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DS90C3202VS/NOPB technical specifications.
General
| Package/Case | TQFP |
| Data Rate | 9.45Gbps |
| Depth | 14mm |
| Height | 1mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Frequency | 135MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of Receivers | 1 |
| Operating Supply Current | 2mA |
| Operating Supply Voltage | 3.3V |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DS90C3202 |
| Supply Current | 375mA |
| Termination | SMD/SMT |
| Weight | 0.01776oz |
| Width | 14mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS90C3202VS/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90C3202VS/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

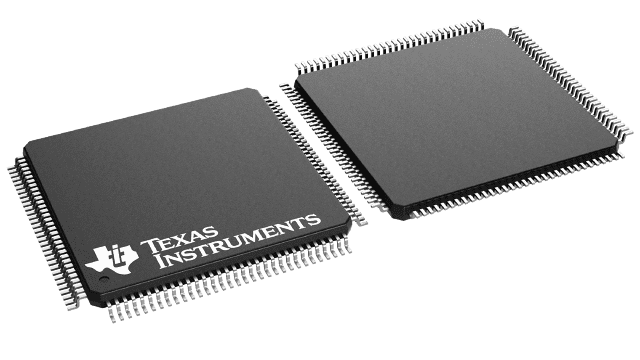

Product Images
