3.3-V programmable LVDS transmitter for 24-bit flat panel displays, operating at 65 MHz with a 1800Mbps data rate. This surface mount integrated circuit features 4 drivers and 28 receivers within a 56-TSSOP package. It supports an operating supply voltage of 3.3V, with a range of 3V to 3.6V, and has a maximum power dissipation of 1.63W. Operating temperature spans from -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
Power1.63W
Quick Jump:
Technical Specifications
Texas Instruments DS90C383MTD technical specifications.
General
Package/Case
TSSOP
Data Rate
1800Mbps
Height
0.9mm
Lead Free
Contains Lead
Length
14mm
Max Input Current
10uA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.63W
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Nominal Supply Current
55mA
Number of Bits
24
Number of Drivers
4
Number of Elements
4
Number of Receivers
28
Operating Supply Voltage
3.3V
Package Quantity
34
Packaging
Rail/Tube
Power Dissipation
1.63W
Radiation Hardening
No
RoHS Compliant
No
Width
6.1mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments DS90C383MTD Datasheet
Download the complete datasheet for Texas Instruments DS90C383MTD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

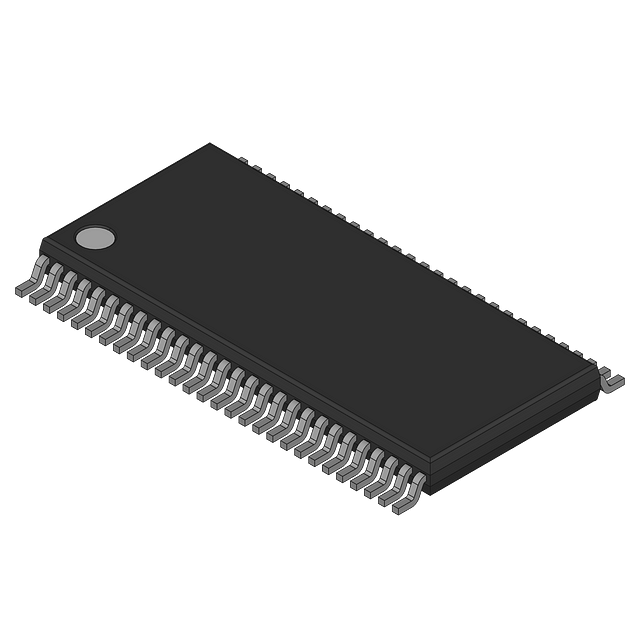

Product Images
