Texas Instruments
DS90C383MTDX/NOPB
3.3-V programmable LVDS transmitter 24-bit flat panel display (FPD-Link) - 65 MHz 56-TSSOP
PackageTSSOP
MountingSurface Mount
Power1.63W
Quick Jump:
Technical Specifications
Texas Instruments DS90C383MTDX/NOPB technical specifications.
General
Package/Case
TSSOP
Data Rate
1800Mbps
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.63W
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
4
Number of Elements
4
Number of Receivers
28
Operating Supply Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
1.63W
Radiation Hardening
No
RoHS Compliant
Yes
Series
DS90C383
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DS90C383MTDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90C383MTDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

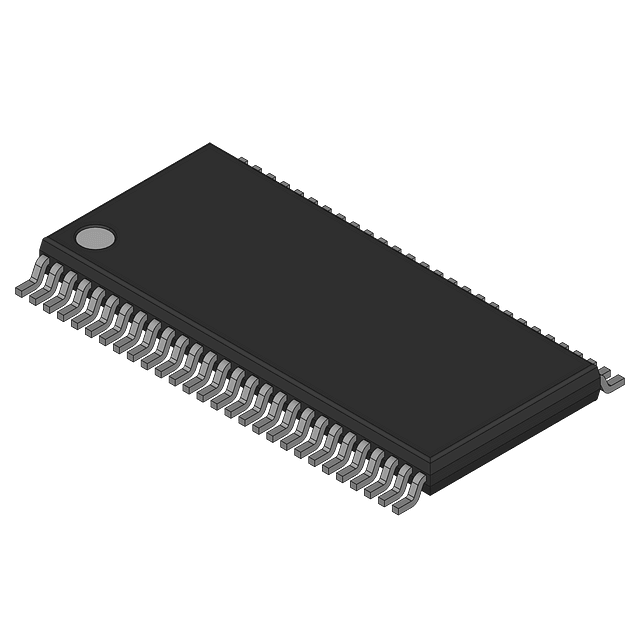

Product Images
