High-speed LVDS transmitter with a 2450Mbps data rate, designed for surface mount applications. Features a 56-pin TSSOP package with dimensions of 14mm length, 6.1mm width, and 0.9mm height. Operates with a supply voltage range of 3V to 3.6V, typically 3.3V, and consumes a maximum supply current of 65mA. Includes 4 drivers and 28 receivers, with a maximum power dissipation of 1.63W. This component is RoHS compliant and operates within a temperature range of -10°C to 70°C.
PackageTSSOP
Current55mA
MountingSurface Mount
Power1.63W
Quick Jump:
Technical Specifications
Texas Instruments DS90C385AMT/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 2450Mbps |
| Height | 0.9mm |
| Interface | LVDS |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Input Current | 10uA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 1.63W |
| Max Supply Current | 65mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Elements | 4 |
| Number of Receivers | 28 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 34 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.63W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DS90C385A |
| Supply Current | 55mA |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS90C385AMT/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90C385AMT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

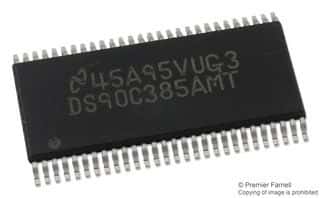

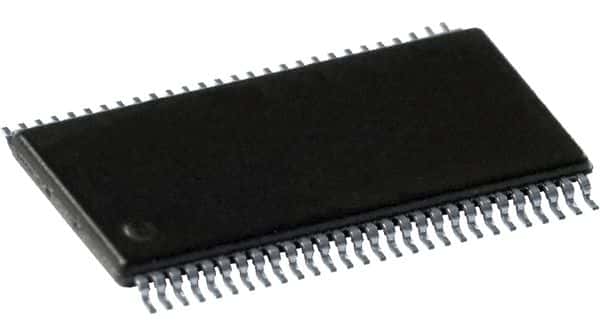

Product Images
