The DS90C385AMTX is a 4-channel bus transceiver with a data rate of 2450Mbps, operating within a temperature range of -10°C to 70°C. It is packaged in a TSSOP-56 package and is designed for surface mount applications. The device is not radiation hardened and is not RoHS compliant. It has a maximum power dissipation of 1.63W and a maximum supply voltage of 3.6V.
PackageTSSOP
MountingSurface Mount
Power1.63W
Quick Jump:
Technical Specifications
Texas Instruments DS90C385AMTX technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 2450Mbps |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 1.63W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Elements | 4 |
| Number of Receivers | 28 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.63W |
| Radiation Hardening | No |
| RoHS Compliant | No |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments DS90C385AMTX Datasheet
Download the complete datasheet for Texas Instruments DS90C385AMTX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

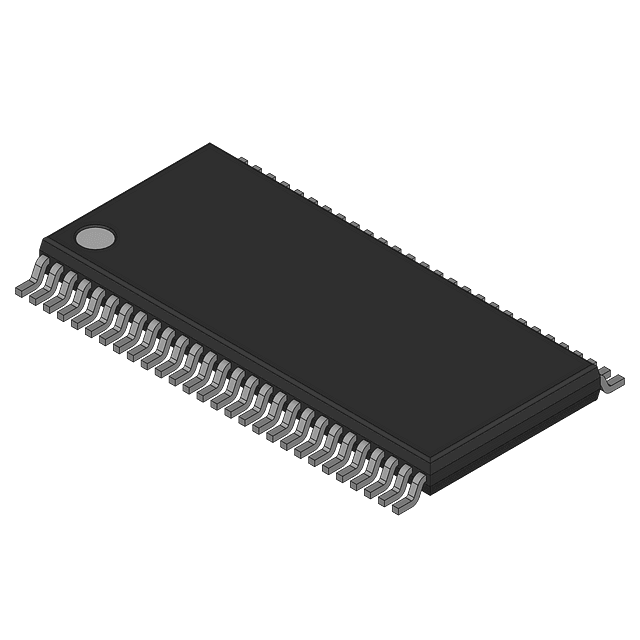

Product Images
