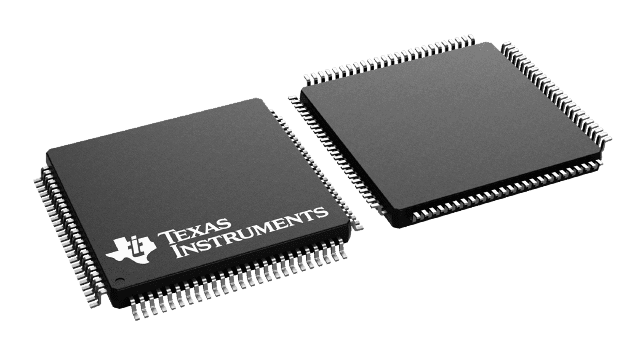

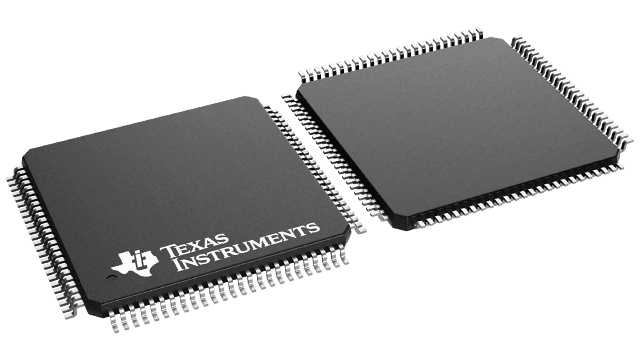

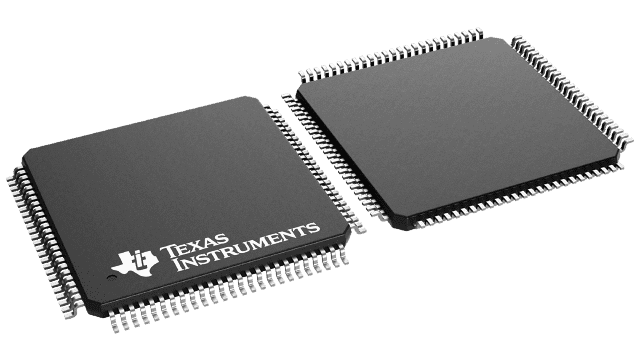

The DS90C387RVJDX/NOPB is a surface mount bus transceiver with 8 drivers and 24 receivers. It operates over a temperature range of -10°C to 70°C and has a maximum power dissipation of 2.8W. This device is RoHS compliant and lead free. It is available in a TQFP100 package with 1000 units per reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DS90C387RVJDX/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments DS90C387RVJDX/NOPB technical specifications.
| Package/Case | TQFP |
| Data Rate | 4760Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 2.8W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 8 |
| Number of Elements | 8 |
| Number of Receivers | 24 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 2.8W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | DS90C387R |
| RoHS | Compliant |
