The DS90CF383MTD/NOPB is a 4-channel bus transceiver from Texas Instruments, operating at a maximum data rate of 227Mbps. It is designed to function within a supply voltage range of 3V to 3.6V and can dissipate up to 1.63W of power. The device is packaged in a TSSOP56 package and is suitable for surface mount applications. It can operate within a temperature range of -40°C to 85°C and is compliant with RoHS regulations.
PackageTSSOP
MountingSurface Mount
Power1.63W
Quick Jump:
Technical Specifications
Texas Instruments DS90CF383MTD/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 227Mbps |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.63W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Elements | 4 |
| Number of Receivers | 28 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 34 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.63W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | DS90CF383 |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS90CF383MTD/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90CF383MTD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

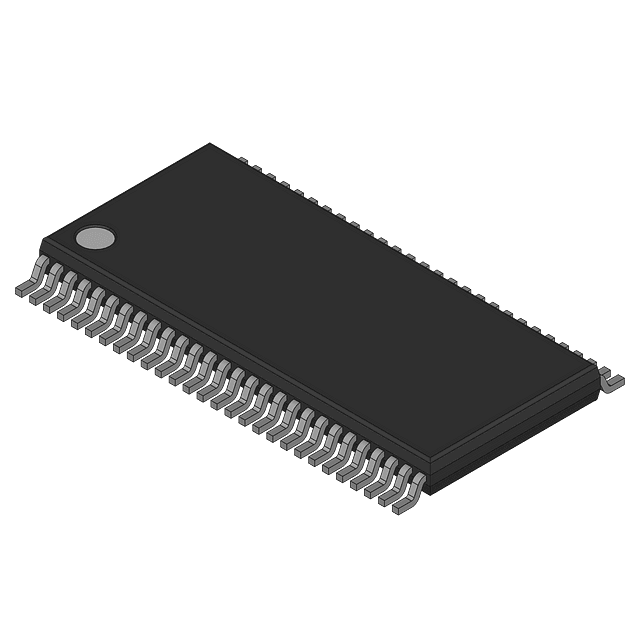

Product Images
