3.3V LVDS Receiver, 24-bit Flat Panel Display (FPD) Link interface IC operating up to 65MHz. Features a 56-TSSOP surface mount package with a data rate of 1800Mbps. Supports a minimum supply voltage of 3V and a maximum of 3.6V, with an operating voltage of 3.3V. This RoHS compliant, lead-free component offers 4 receivers and operates within a temperature range of -10°C to 70°C.
PackageTSSOP
MountingSurface Mount
Power1.61W
Quick Jump:
Technical Specifications
Texas Instruments DS90CF384AMTDX/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 1800Mbps |
| Lead Free | Lead Free |
| Logic Function | Receiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 1.61W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 28 |
| Number of Elements | 4 |
| Number of Receivers | 4 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.61W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS90CF384AMTDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90CF384AMTDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

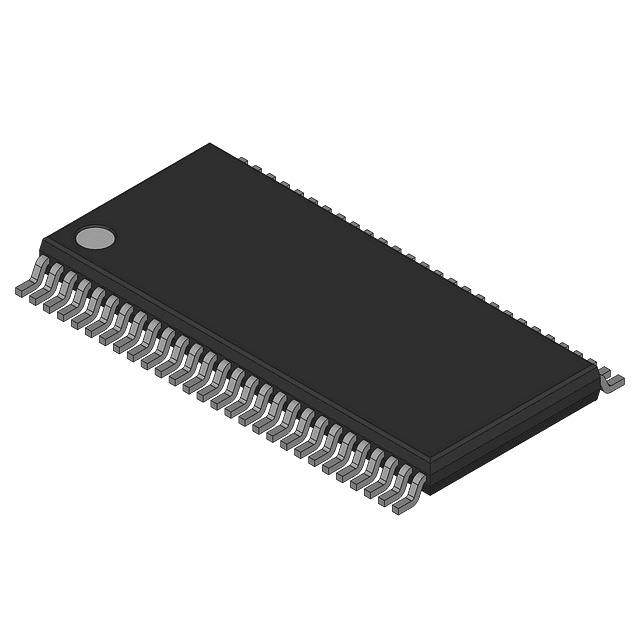

Product Images
