The DS90CF384AQMTX/NOPB is a 24-channel receiver with a data rate of 1800Mbps and an operating supply voltage of 3.3V. It is packaged in a lead-free TSSOP56 package and is RoHS compliant. The device operates over a temperature range of -40°C to 85°C and is suitable for use in high-speed interface applications.
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments DS90CF384AQMTX/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 1800Mbps |
| Lead Free | Lead Free |
| Logic Function | Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Drivers | 24 |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | DS90CF384AQ-Q1 |
| Weight | 0.026103oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS90CF384AQMTX/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90CF384AQMTX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

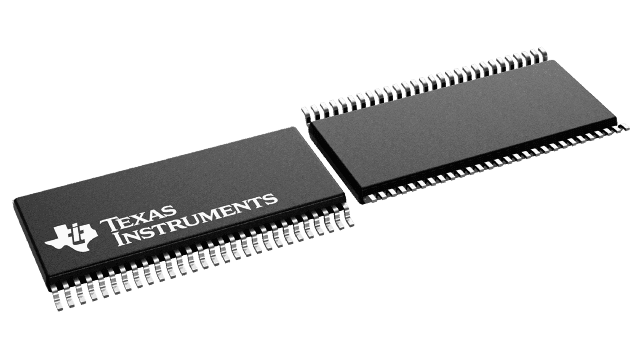

Product Images
