Texas Instruments
DS90CR215MTDX/NOPB
+3.3V Rising Edge Data Strobe LVDS 21-Bit Channel Link Transmitter - 66 MHz 48-TSSOP -40 to 85
PackageTSSOP
MountingSurface Mount
Power122W
Quick Jump:
Technical Specifications
Texas Instruments DS90CR215MTDX/NOPB technical specifications.
General
Package/Case
TSSOP
Data Rate
1386Mbps
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
3
Number of Elements
3
Number of Inputs
21
Number of Outputs
3
Number of Receivers
21
Operating Supply Voltage
3.3V
Packaging
Tape and Reel
Power Consumption
122W
Power Dissipation
1.98W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DS90CR215MTDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90CR215MTDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

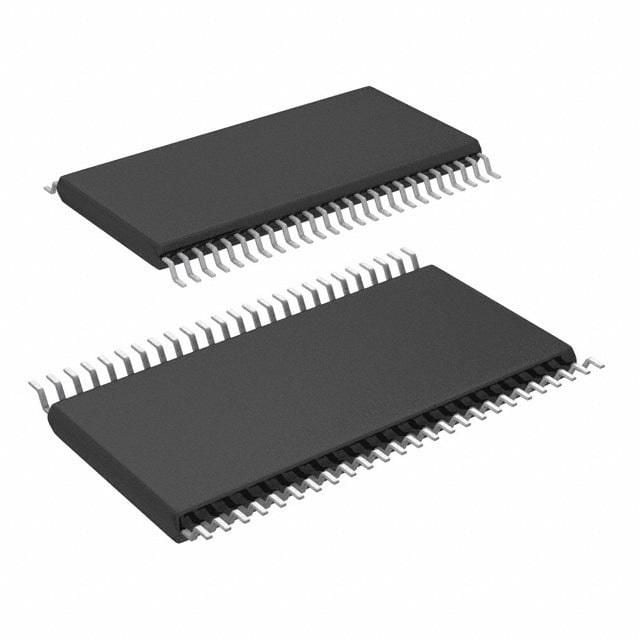

Product Images
