3.3V LVDS 28-Bit Channel Link Transmitter, operating at up to 66 MHz with a data rate of 1848Mbps. This surface mount integrated circuit features ESD protection and is housed in a 56-TSSOP package with dimensions of 14mm length, 6.1mm width, and 0.9mm height. It supports a minimum operating temperature of -40°C and a maximum of 85°C, with a power dissipation of 1.63W and a maximum supply current of 55mA. The device is RoHS compliant and lead-free.
PackageTSSOP
MountingSurface Mount
Power139W
Quick Jump:
Technical Specifications
Texas Instruments DS90CR285MTD/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 1848Mbps |
| ESD Protection | Yes |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.63W |
| Max Supply Current | 55mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Elements | 4 |
| Number of Receivers | 28 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 34 |
| Packaging | Rail/Tube |
| Power Consumption | 139W |
| Power Dissipation | 1.63W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Thickness | 1.15mm |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS90CR285MTD/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90CR285MTD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

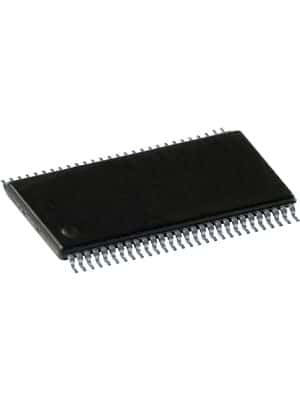

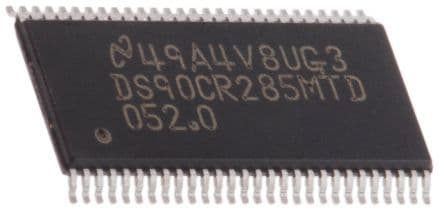

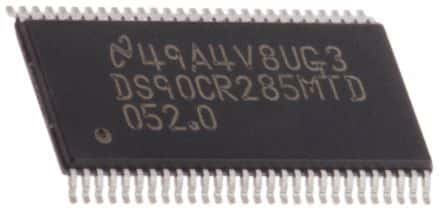

Product Images
