3.3V LVDS 28-bit Channel Link Receiver, operating at 85 MHz with a 2380Mbps data rate. This surface mount integrated circuit features 4 receivers and 4 elements, packaged in a 56-TSSOP. It offers a wide operating temperature range of -10°C to 70°C and is lead-free and RoHS compliant. Power dissipation is 1.61W with a typical power consumption of 317W.
PackageTSSOP
MountingSurface Mount
Power317W
Quick Jump:
Technical Specifications
Texas Instruments DS90CR288AMTDX/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 2380Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Number of Drivers | 28 |
| Number of Elements | 4 |
| Number of Receivers | 4 |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| Power Consumption | 317W |
| Power Dissipation | 1.61W |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS90CR288AMTDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90CR288AMTDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

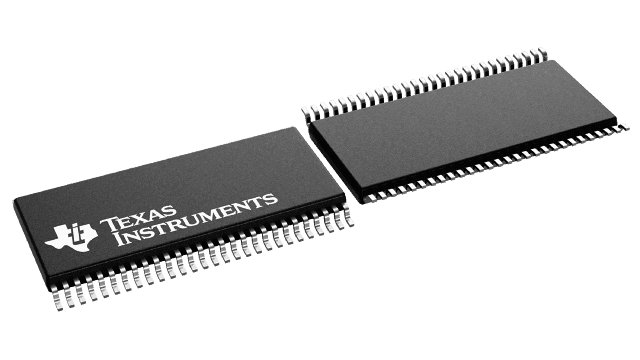

Product Images
