LVDS channel link serializer, a semiconductor interface IC, offers 48-bit data transmission at a 672Mbps data rate. Featuring 48 inputs and 8 outputs, this device supports input clock frequencies from 33 MHz to 112 MHz. Operating from a 3V to 3.6V supply voltage with a typical 3.3V, it is housed in a 14mm x 14mm x 1mm TQFP surface-mount package. Rated for automotive applications (AEC-Q100), it operates between -10°C and 70°C and is RoHS compliant.
PackageTQFP
MountingSurface Mount
Power512W
Quick Jump:
Technical Specifications
Texas Instruments DS90CR483AVJD/NOPB technical specifications.
General
| Package/Case | TQFP |
| Data Rate | 672Mbps |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 2.3W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 8 |
| Number of Elements | 8 |
| Number of Inputs | 48 |
| Number of Outputs | 8 |
| Number of Receivers | 48 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 90 |
| Packaging | Tray |
| Power Consumption | 512W |
| Power Dissipation | 2.3W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Width | 14mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS90CR483AVJD/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90CR483AVJD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

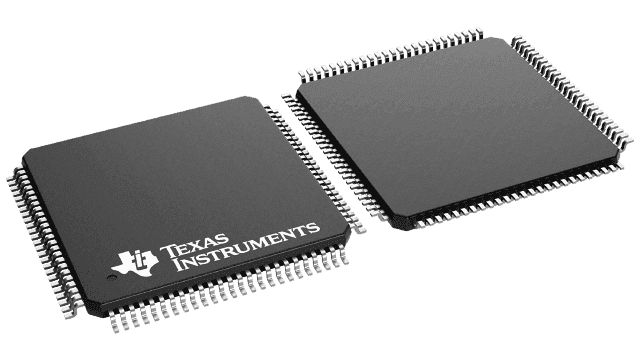

Product Images
