133-MHz 48-bit Channel Link serializer, a surface mount interface IC, offers a high data rate of 6.384Gbps. This TQFP packaged component operates with a supply voltage of 2.5V, ranging from 2.37V to 2.62V, and features 48 inputs and 48 outputs. With a maximum power dissipation of 2.9W and a temperature range of -10°C to 70°C, it is RoHS compliant and lead-free.
PackageTQFP
MountingSurface Mount
Power585W
Quick Jump:
Technical Specifications
Texas Instruments DS90CR485VS/NOPB technical specifications.
General
| Package/Case | TQFP |
| Data Rate | 6.384Gbps |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Input Current | 15uA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 2.9W |
| Max Supply Voltage | 2.62V |
| Min Supply Voltage | 2.37V |
| Mount | Surface Mount |
| Number of Drivers | 8 |
| Number of Elements | 8 |
| Number of Inputs | 48 |
| Number of Outputs | 8 |
| Number of Receivers | 48 |
| Operating Supply Voltage | 2.5V |
| Packaging | Tray |
| Power Consumption | 585W |
| Power Dissipation | 2.9W |
| RoHS Compliant | Yes |
| Series | µSerDes™ |
| Width | 14mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS90CR485VS/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90CR485VS/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

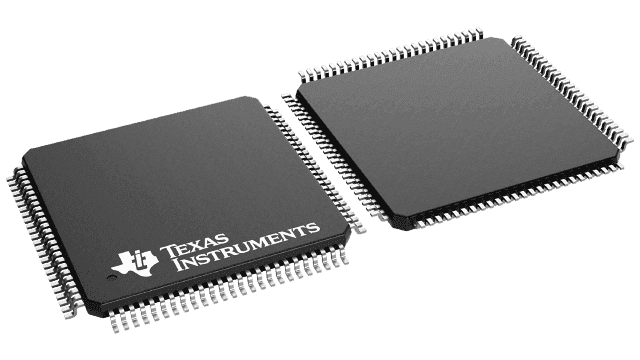

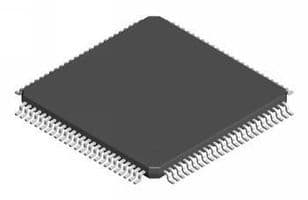

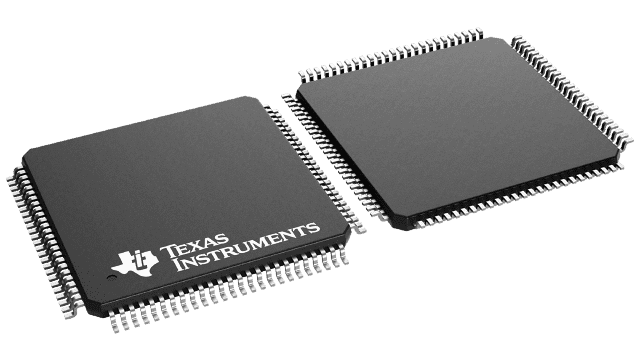

Product Images
