800Mbps LVDS buffer/repeater featuring four channels, designed for high-speed data transmission. This surface-mount integrated circuit operates with a 3.3V supply voltage, drawing a maximum of 140mA. It supports CML input and offers a propagation delay of 3.2ns. The component is RoHS compliant and operates within a temperature range of -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
Power385W
Quick Jump:
Technical Specifications
Texas Instruments DS90LV804TSQ/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 800Mbps |
| Input | CML |
| Lead Free | Lead Free |
| Logic Function | Buffer |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 140mA |
| Max Supply Voltage | 3.45V |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Drivers | 4 |
| Number of Elements | 4 |
| Number of Receivers | 4 |
| Operating Supply Current | 117mA |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| Power Consumption | 385W |
| Power Dissipation | 4.16W |
| Propagation Delay | 3.2ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Thickness | 750um |
| Turn-On Delay Time | 3.2ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS90LV804TSQ/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90LV804TSQ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

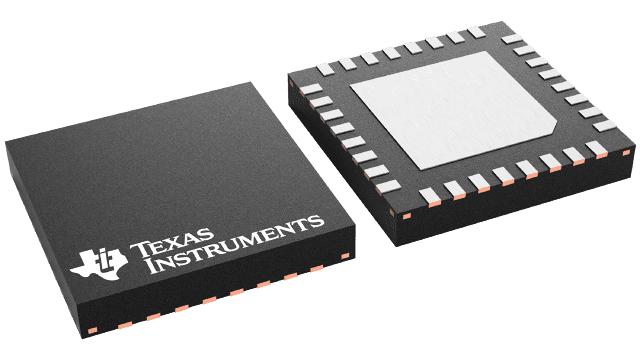

Product Images
