PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DS90UR124IVS/NOPB technical specifications.
General
| Package/Case | TQFP |
| Data Rate | 1.03Gbps |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 24 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 24 |
| Number of Receivers | 1 |
| Operating Supply Voltage | 3.3V |
| Output Current | 4mA |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 0.01272oz |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS90UR124IVS/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90UR124IVS/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

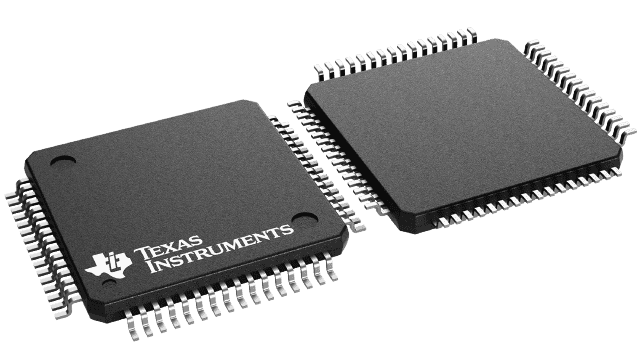

Product Images
