Texas Instruments
DS90UR241IVSX/NOPB
5-MHz to 43-MHz DC-balanced 24-bit FPD-Link II serializer 48-TQFP -40 to 105
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DS90UR241IVSX/NOPB technical specifications.
General
Package/Case
TQFP
Data Rate
1.03Gbps
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
1
Number of Elements
1
Number of Inputs
1
Number of Outputs
24
Number of Receivers
24
Operating Supply Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
DS90UR241
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DS90UR241IVSX/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90UR241IVSX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

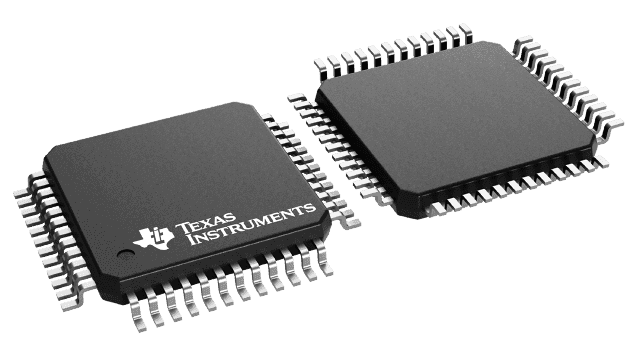

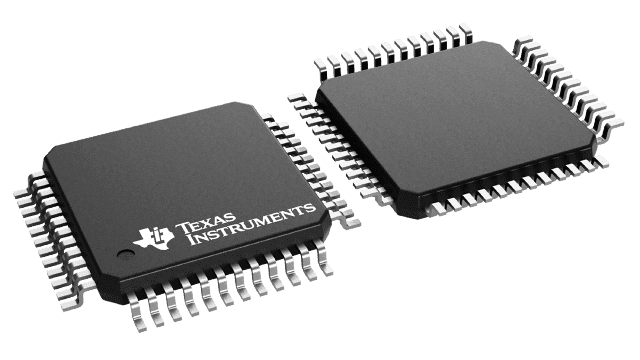

Product Images
