Texas Instruments
DS90UR906QSQ/NOPB
5-MHz to 65-MHz 24-bit color FPD-Link II deserializer 60-WQFN -40 to 105
MountingSurface Mount
Power470mW
Quick Jump:
Technical Specifications
Texas Instruments DS90UR906QSQ/NOPB technical specifications.
General
| Data Rate | 1.82Gbps |
| Features | I²C |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Drivers | 24 |
| Number of Elements | 1 |
| Number of Receivers | 1 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 470mW |
| RoHS Compliant | Yes |
| Series | DS90UR906Q-Q1 |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS90UR906QSQ/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS90UR906QSQ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

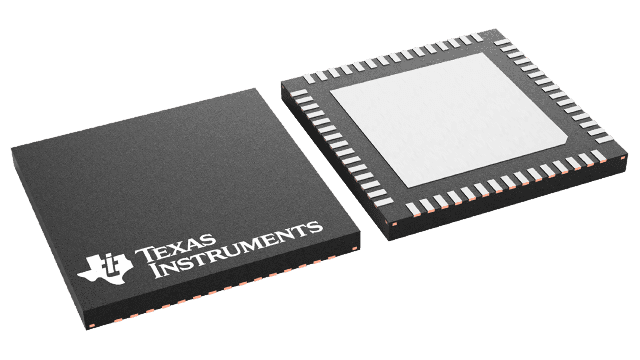

Product Images
