18-bit LVDS Serializer/Deserializer for high-speed data transmission. Features a 2.376Gbps data rate and operates across a wide temperature range of -40°C to 85°C. This surface mount component supports an operating supply voltage of 3.3V, with a maximum of 3.45V. It includes 18 inputs and 1 output, designed for bus transceiver applications. Packaged in an 80-pin LQFP, this RoHS compliant device offers a compact footprint with dimensions of 12mm x 12mm x 1.4mm.
PackageLQFP
MountingSurface Mount
Power726W
Quick Jump:
Technical Specifications
Texas Instruments DS92LV18TVV/NOPB technical specifications.
General
| Package/Case | LQFP |
| Data Rate | 2.376Gbps |
| Height | 1.4mm |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Input Current | 10uA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.45V |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Inputs | 18 |
| Number of Outputs | 1 |
| Number of Receivers | 1 |
| Operating Supply Voltage | 3.3V |
| Packaging | Tray |
| Power Consumption | 726W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DS92LV18TVV/NOPB Datasheet
Download the complete datasheet for Texas Instruments DS92LV18TVV/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

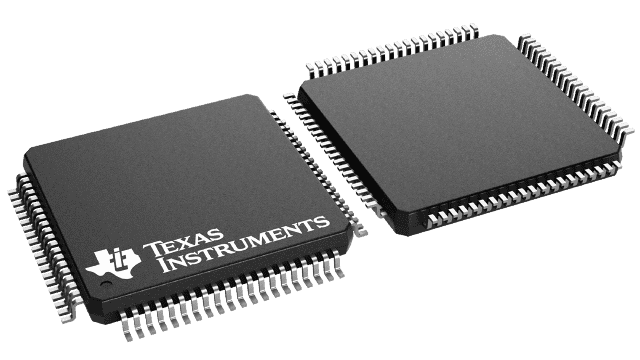

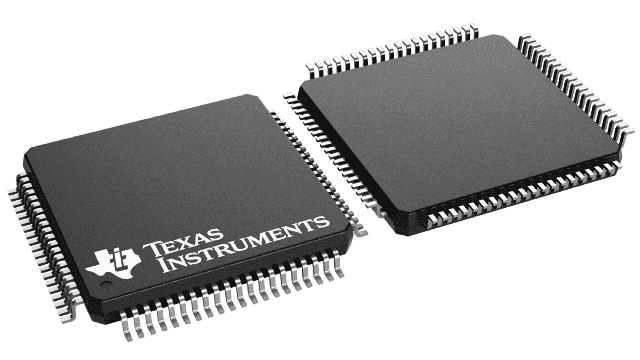

Product Images
