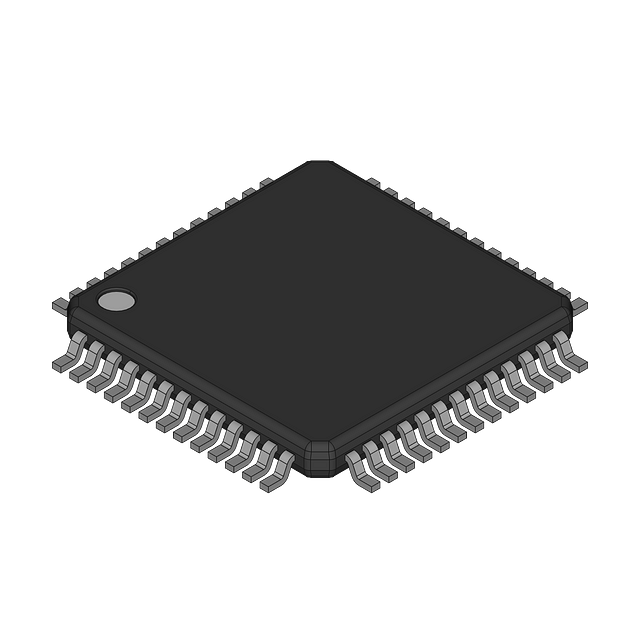

8-Channel Audio Digital-to-Analog Converter (DAC) with 24-bit resolution and 108dB Signal-to-Noise Ratio (SNR). Features a 192KS/s conversion rate and supports serial, 2-wire, and 3-wire interfaces. Operates with a 5V supply voltage (4.5V to 5.5V range) and consumes 270mW of power. Packaged in a 52-TQFP for surface mounting, this lead-free and RoHS compliant component is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DSD1608PAHR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments DSD1608PAHR technical specifications.
| Package/Case | TQFP |
| Conversion Rate | 192KS/s |
| Interface | Serial, 2-Wire, 3-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 74mA |
| Number of Analog Inputs | 0 |
| Number of Analog Outputs | 8 |
| Number of Channels | 8 |
| Number of Converters | 8 |
| Number of DAC Channels | 8 |
| Operating Supply Voltage | 5V |
| Output Type | Voltage |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Power Consumption | 270mW |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 200000S/s |
| Signal to Noise Ratio (SNR) | 108dB |
| Supply Type | Analog, Digital |
| Weight | 0.009171oz |
| RoHS | Compliant |
