Texas Instruments
GD75232DWR
5-V multichannel 120kbps RS-232 line driver/receiver with +/-7.5V output & +/-1.5-kV ESD protection 20-SOIC 0 to 70
PackageSOIC
Current30mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments GD75232DWR technical specifications.
General
Package/Case
SOIC
Data Rate
120Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
3
Number of Receivers
5
Number of Transceivers
1
Number of Transmitters
3
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
GD
Simplex/Duplex
Full Duplex
Supply Current
30mA
Weight
0.017662oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments GD75232DWR Datasheet
Download the complete datasheet for Texas Instruments GD75232DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

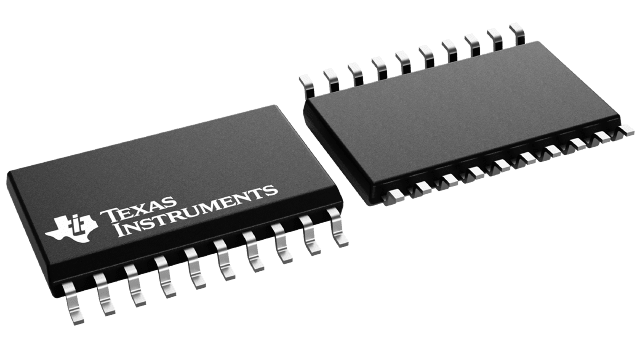

Product Images
