The HD3SS212ZQER is a 2.7GHz logic switch from Texas Instruments, packaged in a VFBGA case. It operates within a temperature range of -40°C to 85°C and is compliant with RoHS regulations. The device has an on-state resistance of 10 ohms and a propagation delay of 200 picoseconds. It draws 2.5mA of operating supply current and 5mA of supply current in total.
Frequency2.7 GHz
PackageVFBGA
Current5mA
Quick Jump:
Technical Specifications
Texas Instruments HD3SS212ZQER technical specifications.
General
| Bandwidth | 2.7GHz |
| Package/Case | VFBGA |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| On-State Resistance | 10R |
| Operating Frequency | 2.7 GHz |
| Operating Supply Current | 2.5mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Propagation Delay | 200ps |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments HD3SS212ZQER Datasheet
Download the complete datasheet for Texas Instruments HD3SS212ZQER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

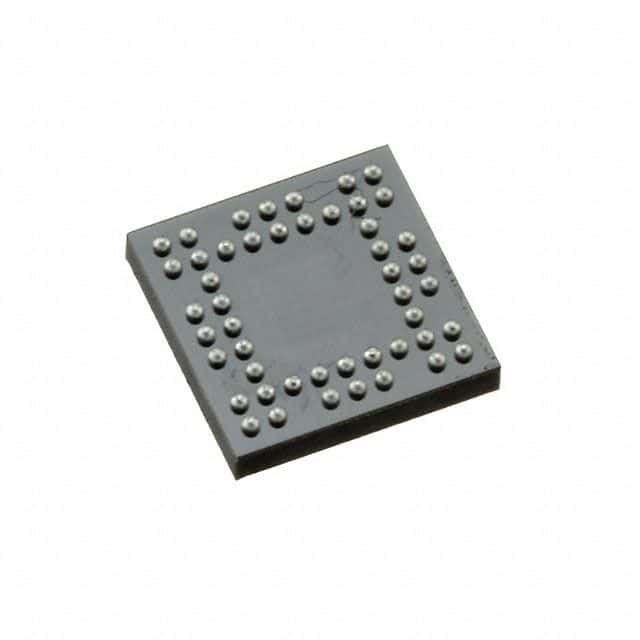

Product Images
