Digital humidity sensor with integrated temperature sensor, offering 3% humidity accuracy and 14-bit resolution. Operates from a 2.7V to 5.5V supply voltage, with a temperature range of -40°C to 125°C. Features an I2C digital interface and a fast 15s response time. Packaged in a compact 1.62mm x 2.07mm x 0.41mm 8-DSBGA surface-mount package. RoHS compliant and lead-free.
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments HDC1000YPAT technical specifications.
General
Accuracy
3%
Package/Case
BGA
Height
0.41mm
Interface
I2C
Lead Free
Lead Free
Length
2.07mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Output Type
I2C, Digital
Packaging
Cut Tape
Reach SVHC Compliant
No
Resolution
14b
Response Time
15s
RoHS Compliant
Yes
Sensor Type
Temperature
Width
1.62mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments HDC1000YPAT Datasheet
Download the complete datasheet for Texas Instruments HDC1000YPAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

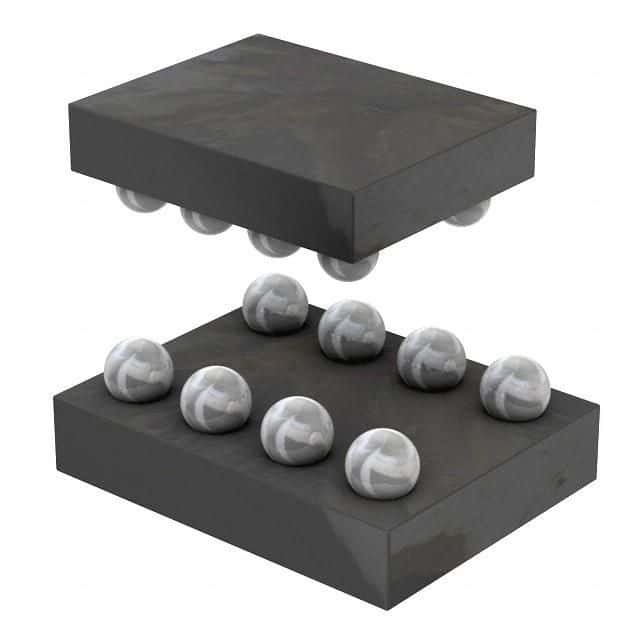

Product Images
