High-accuracy instrumentation amplifier featuring a 300kHz bandwidth and 100dB common-mode rejection ratio. Operates with dual supply voltages from ±5V to ±15V, with a maximum supply voltage of ±20V. Offers a low input bias current of 30nA and an input offset voltage of 125µV. This 1-channel amplifier is housed in a 14-PDIP package, suitable for operation across a wide temperature range of -55°C to 125°C.
PackageN
Current8.5mA
Power600mW
Quick Jump:
Technical Specifications
Texas Instruments INA101HPG4 technical specifications.
General
| -3db Bandwidth | 300kHz |
| Bandwidth | 300kHz |
| Package/Case | N |
| Common Mode Rejection Ratio | 100dB |
| Dual Supply Voltage | 15V |
| Input Bias Current | 30nA |
| Input Offset Voltage (Vos) | 125uV |
| Input Resistance | 10GR |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 20V |
| Min Dual Supply Voltage | 5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600mW |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 10V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 3 |
| Operating Supply Current | 6.7mA |
| Output Current | 10mA |
| Output Current per Channel | 10mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Dissipation | 600mW |
| Quiescent Current | 6.7mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.4V/µs |
| Supply Current | 8.5mA |
| Voltage Gain | 60dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments INA101HPG4 Datasheet
Download the complete datasheet for Texas Instruments INA101HPG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

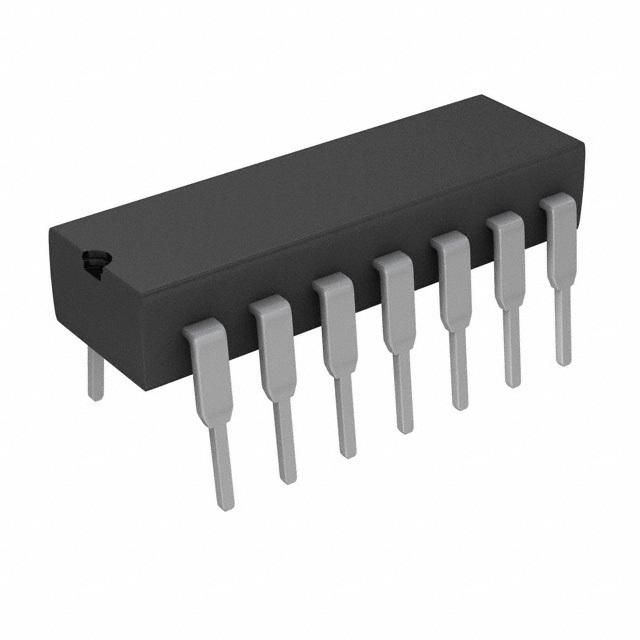

Product Images
