Single-channel instrumentation amplifier featuring a 1MHz bandwidth and 0.6V/µs slew rate. Offers a high Common Mode Rejection Ratio of 106dB and a low input offset voltage of 25µV. Operates with dual supply voltages from ±2.25V to ±18V, with a maximum supply voltage of 36V. Housed in a 16-pin SOIC package, this RoHS compliant component is ideal for precise signal amplification.
PackageSOIC
Current3mA
Quick Jump:
Technical Specifications

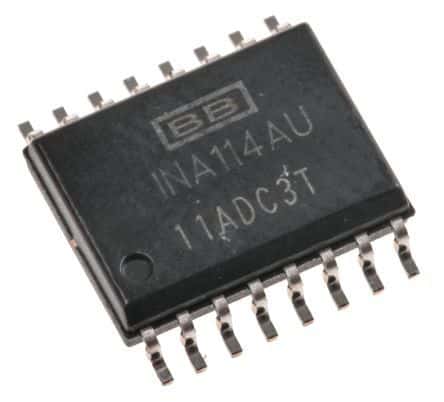

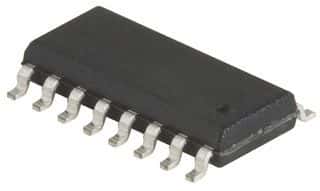

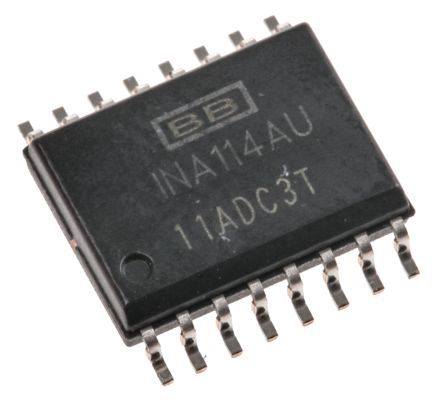

Texas Instruments INA114AU technical specifications.
General
-3db Bandwidth
1MHz
Bandwidth
1MHz
Package/Case
SOIC
Common Mode Rejection Ratio
106dB
Dual Supply Voltage
9V
Gain Bandwidth Product
1MHz
Height
2.35mm
Input Bias Current
5nA
Input Offset Voltage (Vos)
25uV
Input Resistance
10GR
Input Voltage Noise Density
11nV/sqrt Hz
Lead Free
Lead Free
Length
10.28mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.25V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
3mA
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
3
Operating Supply Current
2.2mA
Output Current per Channel
20mA
Package Quantity
40
Packaging
Rail/Tube
Quiescent Current
2.2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
INA114
Slew Rate
0.6V/µs
Supply Current
3mA
Voltage Gain
80dB
Weight
0.014829oz
Width
7.52mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA114AU Datasheet
Download the complete datasheet for Texas Instruments INA114AU to view detailed technical specifications.
