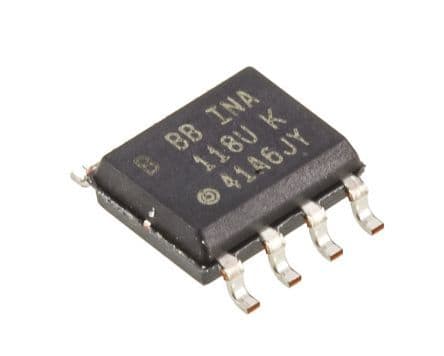

Single-channel instrumentation amplifier with 80dB voltage gain and 800kHz -3dB bandwidth. Features 50µV input offset voltage, 5nA input bias current, and 10GΩ input resistance. Operates from ±1.35V to ±18V dual supply or 2.7V to 36V single supply, with a maximum supply current of 385µA. Packaged in an 8-pin SOIC (D) with dimensions of 4.9mm x 3.91mm x 1.58mm. RoHS compliant and lead-free.
PackageD
Current385uA
Quick Jump:
Technical Specifications
Texas Instruments INA118UB technical specifications.
General
-3db Bandwidth
800kHz
Bandwidth
800kHz
Package/Case
D
Common Mode Rejection Ratio
107dB
Dual Supply Voltage
15V
Gain Bandwidth Product
800kHz
Height
1.58mm
Input Bias Current
5nA
Input Offset Voltage (Vos)
50uV
Input Resistance
10GR
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1.35V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
385uA
Max Supply Voltage
36V
Min Supply Voltage
2.7V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
3
Operating Supply Current
350uA
Operating Supply Voltage
36V
Output Current per Channel
12mA
Package Quantity
75
Packaging
Rail/Tube
Quiescent Current
350uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.9V/µs
Supply Current
385uA
Voltage Gain
80dB
Weight
0.002677oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA118UB Datasheet
Download the complete datasheet for Texas Instruments INA118UB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
